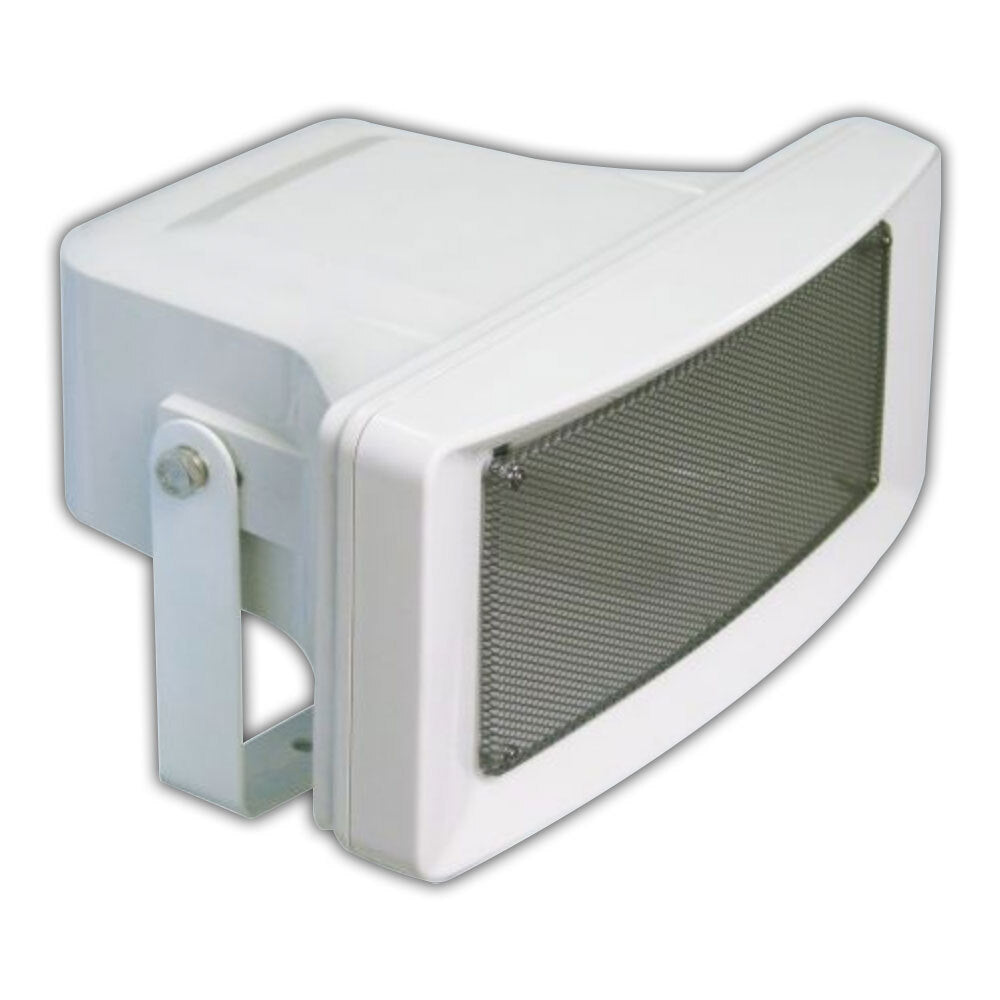

inDesign iD-PS30 IP66 Rated Line or Low Impedance Projector Speaker

The iD-PS30 projector speaker from inDesign is a full range IP66 weather rated ABS plastic injection moulded speaker that combines the sound quality of a typical full range speaker with the flexibility and ease of deployment of typical horns.

Suitable for full range background music and paging applications, the iD-PS30 provides a medium throw distance with a dispersion of 90°H X 60°V.

The iD-PS30 features an IP rated, sealed enclosure.

Specifications:

• Driver: 1 x 5 inch full range
• Frequency Response: 100 Hz – 10 kHz
• Sensitivity: 93 dB @ 1W/1m
• Dispersion: 90°H X 60°V
• Impedance: 8Ω nominal
• Power Handling: 30 watts RMS @ 8Ω
• 100V Tapping: 30, 15, 7.5, 3.8 watts
• 70V Tapping: 30, 15, 7.5, 3.8, 1.9 watts
• IP Rating: IP66
• Operating Temperature: -25°C – 55+°C
• Main Construction: UV rated ABS plastic cabinet, off-white colour
• Dimensions (W x H x D): 365 mm x 173 mm x 272 mm
• Weight: 3 kg
